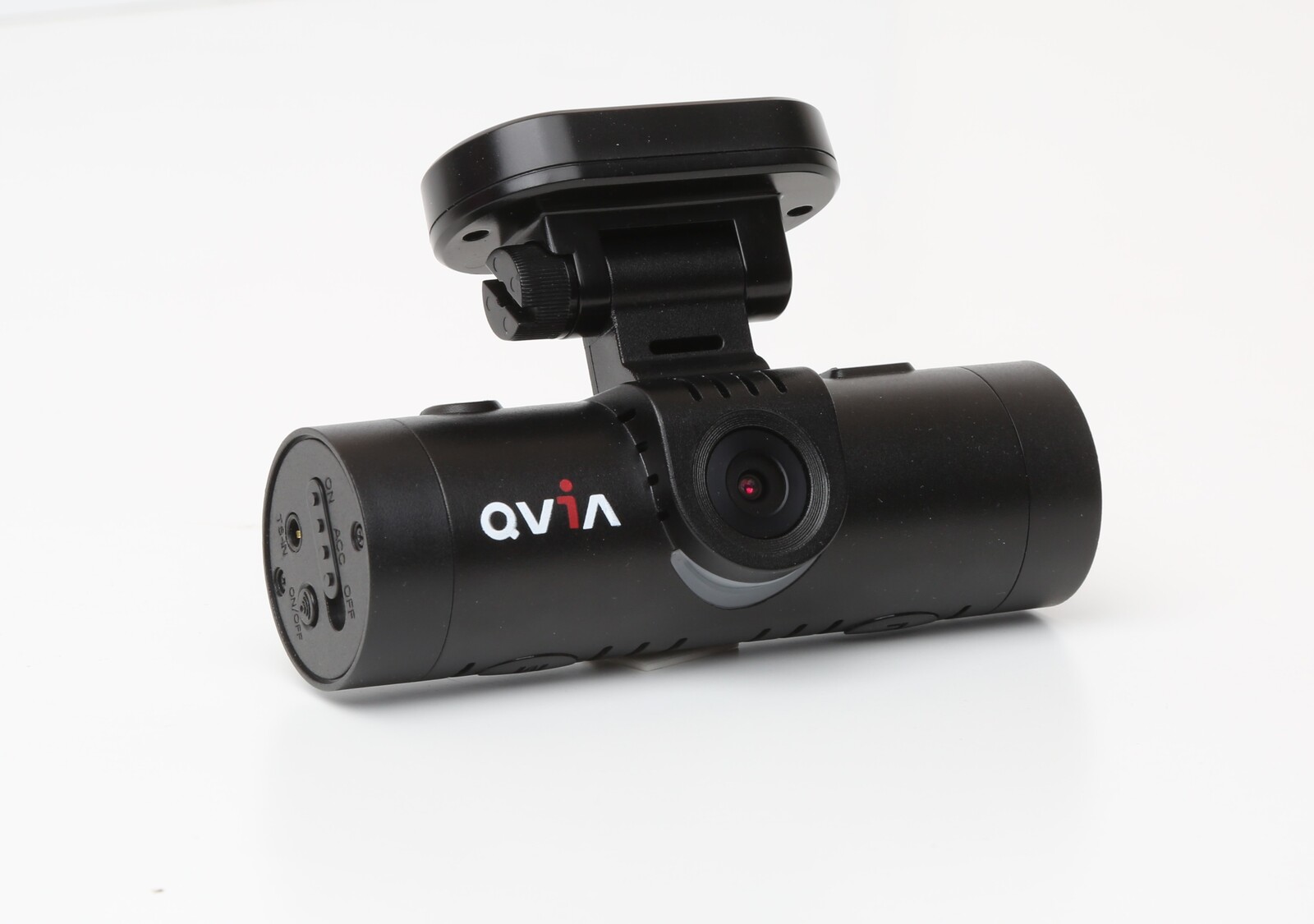

QVIA AR790-1CH Dashcam

FULL HD, Slim Design 1 Channel Dashcam

Availability: In Stock
$399.00

Available Options

  • AR790 Front Dascam 1080P Full HD
  • Sony EXMOR Sensor 2.1M Pixels
  • Ambrella A12 Chipset
  • NightVision and WDR technology
  • GPS Inbuilt
  • Wifi Inbuilt with QVIA APP for Android and Apple smartphone
  • ADAS
  • PARKMODE Recording
  • Permanent Power harness
  • Low Voltage cut off function
  • 32GB SD Card (Max 512GB)
  • QVIA Playback viewing software PC and Mac
  • Format Free Technology
  • Built-in Supercapacitor
  • Built-in Microphone and Speaker
  • Compatible with QVIA Tamper proof case (optional)
  • 2 Year Australian Warranty

QVIA AR790-1CH is one of best selling, high performing Dashboard cameras

The QVIA AR790-1CH is one of best selling Dashboard camera in the QVIA’s range. Its slim discrete design, reliability, list of features, its performance and reliability make it one of the most popular dashcams.  As with all the Lukas and QVIA dashcams, it is designed, engineered and produced in Korea to the highest levels to ensure it meets your expectations.

The Qvia AR790-1ch dashcam come with a 2 Year Australian Warranty.

The QVIA AR790 1 channel dashcam, what does it have?

  • 1 x FULL HD FRONT CAMERA Front camera is recording at 1080P, using 2.1 Megapixel Sony EXMOR Image Sensor. With wide 135 viewing angle for the front a. The QR790-1 channel also comes with your Wide Dynamic Range WDR and Night Vision Technology ensures you capture the highest quality videos day or night, Driving or parked.

  • AMBRELLA CHIP. The CPU used for the QVIA AR790-1CH is industry leading AMBRELLA A12 chipset, giving you consistent nd reliable performance.

  • ADAS- Advanced Driver Assist System is included in the QVIA AR790-1CH.  It's designed to help the driver with road and traffic conditions. For QR790-1CH ADAS includes LDWS Lane Departure warning system, FCWS Front Collision warning system, FCMD Front Car moving Detection. These features require simple calibration process for you set up for you vehicle. All are programmable ON and OFF.

  • PARKING MODE RECORDING- This is one of the most requested features for your Dashboard camera. All the QVIA LUKAS dashcams come standard with permanent power kit. Parking Mode Recording feature of the QVIA AR790-1CH allows you to record files even if you parked. The AR790-1Ch can detect Motion and Impact when parked and will keep a 30 second file of the event. It will record the 10 seconds before the event and 20 seconds after the impact. You can change the sensitivity of these setting any time to suite your needs

  • Wi-Fi- the Inbuilt Wi-Fi of the QVIA AR790-1CH allows you to connect your Apple iPhone or Android Smartphone directly to your dashcam via the QVIA APP. This allows you to view and download files, change settings and more without having to take out the Micro SAD card

  • GPS. This feature is inbuilt in to the product design, no extra attachments or cables required. The GPS can provide you with location and speed information recorded directly to your micro Sd card.

  • MICRO SD CARD The AR790-1CH comes standard with 32GB Micro Sd card. You can use up to 512GB micro SD card to massively increase the number of hours you can record before the recording starts to loop. Its format free technology extends the lifespan of your memory card and provides a more secure recording process.

  • RECORDING MODES.  The QVIA AR790-1CH will allocate your files into modes.   ALWAYS- Standard driving it will record in 3-minute videos. EVENT- Records before and after impact is detected for 30 seconds in total, 10 sec prior and 20 sec after impact. MANUAL- Records when the ‘M’ button is pressed. Records for 30 seconds both front and rear. MOTION DETECTION RECORDING- Records when motion is detected during parking mode. Records for 30 seconds both front and rear. TIME LAPSE – Captures one per second during parking. Allows more recording files during parking.For more information check out the information on this page or Contact us for so we can answer any of your questions

  • Heat Resistance. The LUKAS QVIA dashcams are designed and engineered to withstand the High Heat temperatures for operation and recording within your vehicles environment.



What do you get in the box?

1 x AR790 Front Dash Cam Main unit

1 x Hardwire permanent power kit

1 x 32GB Micro SD Card

1 x Front Camera mount bracket

1 x Adhesive pads for camera

1 x User Manual

For installation of Hardwire kit and Rear camera we recommend installation by experienced-professional service

The Qvia AR790-1ch dashcam comes with a 2 Year Australian Warranty







(AR790)





Product Specifications

QVIA NON-LCD MODELS

AR790-2CH

AR790-1CH


AR790-2CH AR790-1CH

Resolution /
Frame Rate

2CH FHD + FHD

1CH FHD

F : 1920 x 1080p @ 30fps
R : 1920 x 1080p @ 30fps

F: 1920 x 1080p @ 30fps

Memory

32GB (Up to 512GB)

Camera

Front / Rear : 2.1M Effective Pixel,
Sony IMX 322 Sensor

Front: 2.1M Effective Pixel,
Sony IMX 322 Sensor

CPU

AMBARELLA A12

Viewing Angle
(Approx.)

F : 135° / R: 130°

F : 135°

Recording Modes

Always Recording, Event Recording,
Parking Mode Recording (Motion Detection or Timelapse), Manual(Emergency) Recording

Image Quality

Highest, High, Normal

Video Compression

MP4

Wi-Fi

802.11 b/g/n (2.4-2.4835 GHz)

GPS

Built-in / Ublox 8 Dual Band (GPS+Glonass)

Microphone

Built-in

Speaker
(Voice Guidance)

Built-in (21 languages)

LED Indicators

Front : Security LED, Recording LED, GPS LED, Wi-Fi LED, ADAS LED
Rear : Security LED

Low-voltage
Cut-off System

Format Free
System

Qvia Night Vision

Current
Consumption

295mA

295mA

Operating Temp.
Storage Temp.

-30C -80C / -40C -90C
(-22F - 176F / -40F - 194F )

-30C - 70C / -40C -80C
(-22F - 158F / -40F - 176F )

Screen / Resolution

N/A

Size(mm)

F : 101 x 62 x 38
R : 50 x 26 x 31

F : 101 x 62 x 38


Weight(g)

F : 82 / R : 25

F : 82

Tamper-Proof Case

Qvia Tamper-Proof Case Blocks physicall access to :

1. SD card
2. Power and Rear Cable
3.Power Switch on the dashcam
4.Format button on the dashcam

ADAS 2.0

ADAS (Advanced Driver Assistance Systems)

LDWS (Lane Departure Warning System)
FCWS (Forward Collision Warning System)
FCMD (Front Car Moving Detection)
(ADAS can be selectively turned on and off / Configuration settings for sensitivity and speed for alarm activation)

Vibrator
(Option)

ADAS Seat Vibrator
Physically Alerts the Driver when LDWS, FCWS alarm is activated
(Configuration settings for vibration intensity, on/off option)

Other features

Parking Mode Event Voice Notification : When exiting Parking Mode Recording, Qvia AR790 give a voice alert to the driver
if Events were recorded in Parking Mode, so that the driver can check the recording right away on the Lukas App.
Scheduled Memory Card Format : Schedule memory card format every 4, 8, 16, 32 weeks to minimize potential memory card errors.

*Subject to change for product improvement

SKU AR790
Model # AR-790
Barcode # 8809359725952
